Model:WG-A4003

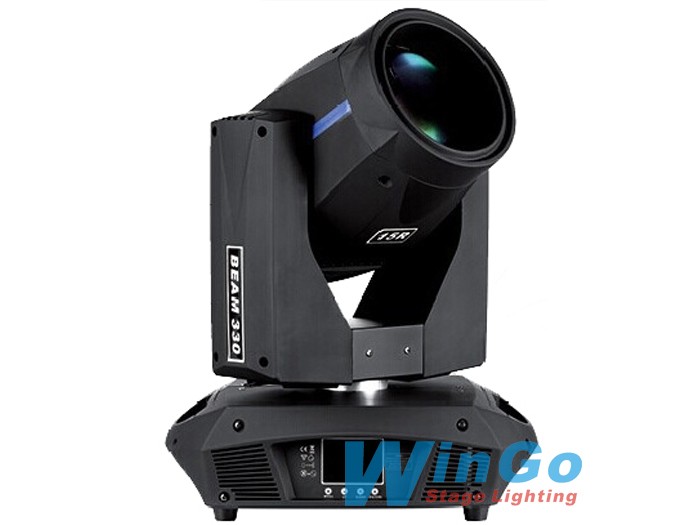

Name:15R beam330 moving head
Power consumption:400W
Light source:YODN MSD330W 15R
Control channels:selectable 17 mode
Operation menu: LCD screen display

Power supply: AC110V-250V

Frequency: 50-60Hz

Power consumption: 400W

Light source: YODN MSD 330W 15R

Pan movement: 540 degrees, 8bit/16bit adjustable, electronic correction

Tilt movement: 270 degrees, 8bit/16bit adjustable, electronic correction

Strobe:double-plate dimming, flash 1-13/s,speed controllable

Color Wheel: 14 colors + open

Gobo Wheel: 7 rotating and slot & lock gobos + white

Rotating prism: 3-facet rotating prism ( 8 facet is available)

Beam Angle: from 0 degree to 2.3 degree

Dimmer: 0~100% linear dimming

Zoom: 2-glass zoom adjustment

Frost: 0%-100%

Heat protection: one 85℃ over heat protection thermostat

Working temperature: -10℃-45℃ maximum

Control channels: 17 chs

Control mode: DMX512, master/slave

Cooling: low noise fan

Operation menu: LCD screen display

Packing size: 560*470*610mm

N.W: 21.5kg

G.W: 23kg
